Détails sur le produit:
Conditions de paiement et expédition:
|
| Nom: | Machine à couper le tabac | Leadtime: | One month |
|---|---|---|---|
| Brand: | Upperbond | Largeur de coupe: | 0.15-1.5mm |
| Storage capacity: | 120 kg/m³ | Le pouvoir: | 9.15 kW |
| Usage: | Tobacco/chinese medicine cutting | Original: | China |
| Payment: | TT,Wester union | Rated Capacity: | 3000KG |
| Control System: | Servo drive +PLC+ touch screen | Dimension: | 1881*1116*2160MM |
| Mettre en évidence: | MC84R Tobacco Cutting Machine,120 kg/m3 Tobacco Cutting Machine,0.15-1.5mm Tobacco Cutting Machine |
||
Product description

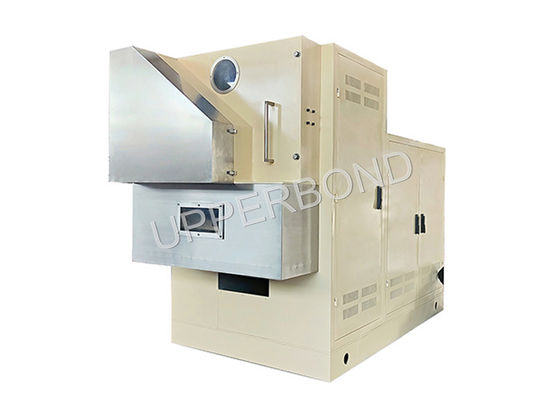

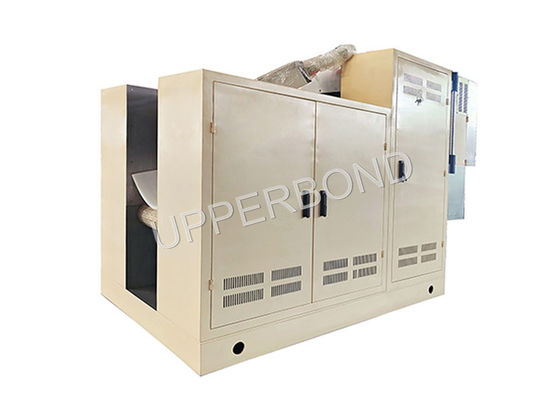

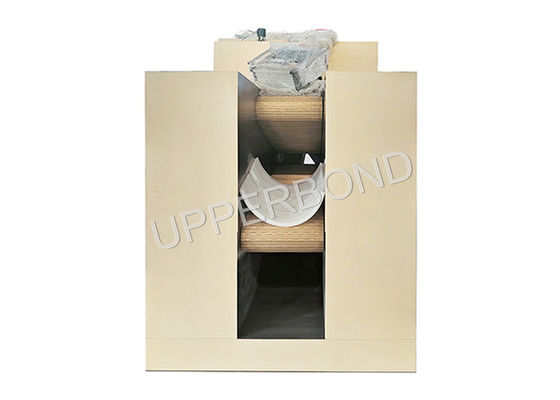

MC84R rotary cutting machine is a special machine for cutting vegetables, tea, Chinese medicine or similar materials independently developed by our company. MC84R rotary cutting machine is composed of fuselage, feed belt, compaction belt, cutter head, automatic sharpening device, automatic feed device and control system. This machine adopts our company's innovative proprietary technology and automatic control system such as servo drive, PLC and touch screen, which can set and run multiple parameters to meet different production needs.
Specification:
| Item | Unit | Parameter | Remarks |
| Cutting width | mm | 0.15-1.5 | adjustable |
| Rated capacity | kg/h | 3000 | It is related to material characteristics and cutting width |
| Storage capacity | Kg/m³ | 120 | 12% moisture |
| Knife door high | mm | 75 | Max 80mm |
| Knife door width | mm | 400 | |
| Blade quantity | pcs | 8 | |
| Knife roll rate | rpm | 50-300 | |
| Air supply pressure | mpa | 0.6 | |
| Blade life span | Hr | 98 | |
| Grinding wheel life span | Hr | 50 | |
| Total power | Kw | 9.15 | |
| Control mode | Servo drive +PLC+ touch screen | ||
| Quality | Kg | 4000 | |
| Overall dimension | mm | 1881*1116*2160 | |
Main technical parameters:
Working conditions
a) Ambient temperature :10～40℃
b) Relative humidity:≦80%
c) Above sea level:≦2000m
d) Power supply:3n～50hz,380v±38v；50hz±1hz
e) Compressed air:≧0.6mpa,0.4m3/min,should be dried and filtered.
f) Incoming material:Tea / vegetables / herbs:Moisture content: Between 18% to 28%,no
caking, no metals and other hard impurities.
g) Operators should be trained, and in strict accordance with the instructions manual.
Terms and Conditions
1.Trade Term: FOB
2. Delivery: 1-2 MONTHS
3.Payment: 50% DEPOSIT BY T/T IN ADVANCE, 50% BALANCE BEFORE SHIPMENT.
4.Shipment: BY SEA
5.Warranty: ONE YEAR
Remarks:
